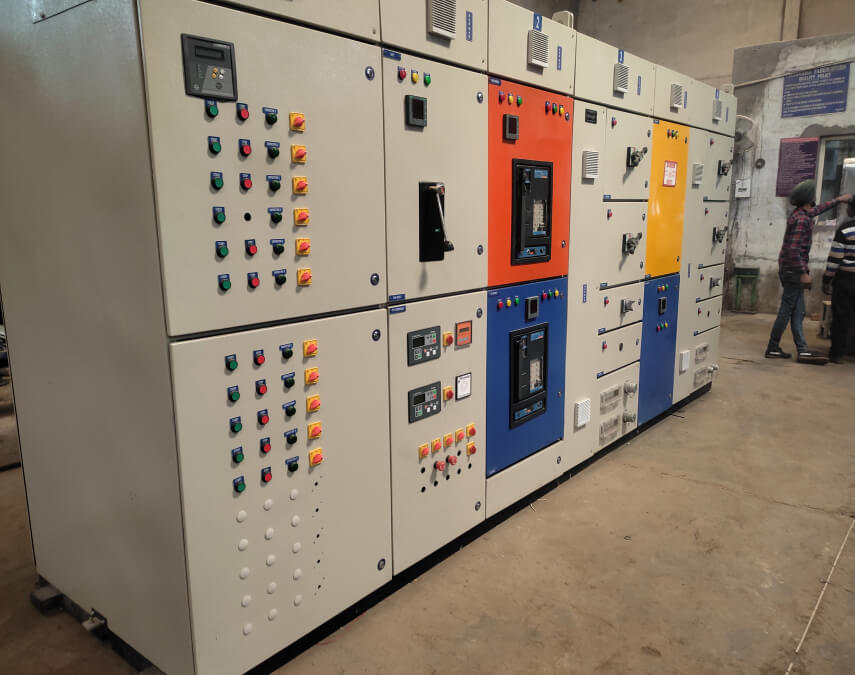

PCC PANEL
Power Control Center is used for distribution and control of various power source used in industry.
Advantage of PCC Panel:
- Assemblies offering maximum reliability.
- Test and detached point with door closed for security.
- For each rated present range, most favorable connection conditions for cables.
- improved communication system.
Uses.
- Refineries, chemical plants, dairies, refrigeration plant, pharmaceuticals and plastic industry.

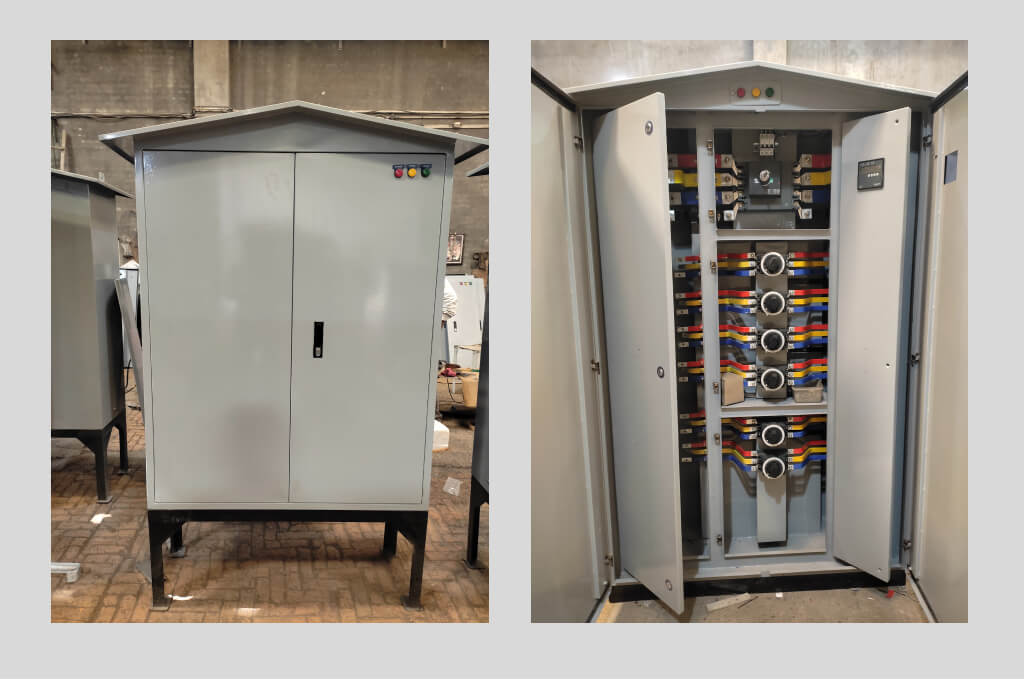

Outdoor db panel
These panels are used for dividing main electric power feeds into various circuits.
Advantage:
- Flawless design
- Easy to use
- Long serving life
Used at- Residential buildings, All Industrial buildings, Airport, Stadiums, Outdoor fabrication centers

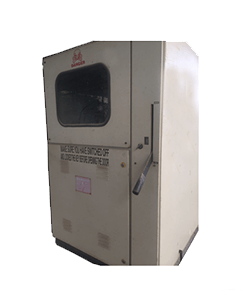

Ht go panel
HT go panels are compact outdoor type systems, which are broadly used in substations.
Advantage:
- Flawless design
- Easy to use
- Long serving life
Used at-Residential, Commercial, Large & Small Industrial

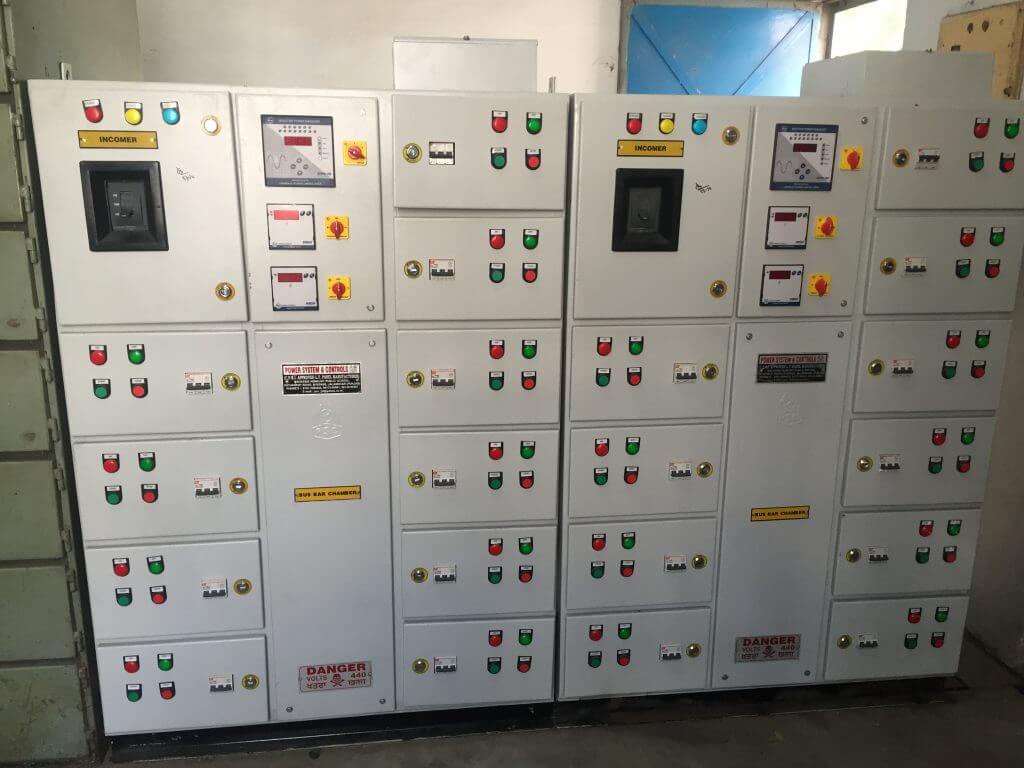

DOL & FASD PANEL
It is used to connect the motor directly to the power supply performing therefore a full-voltage start-up.
Advantage:
- Rigid design.
- Require less maintainer.
- Optimum functionality.
Used at bigger industries.

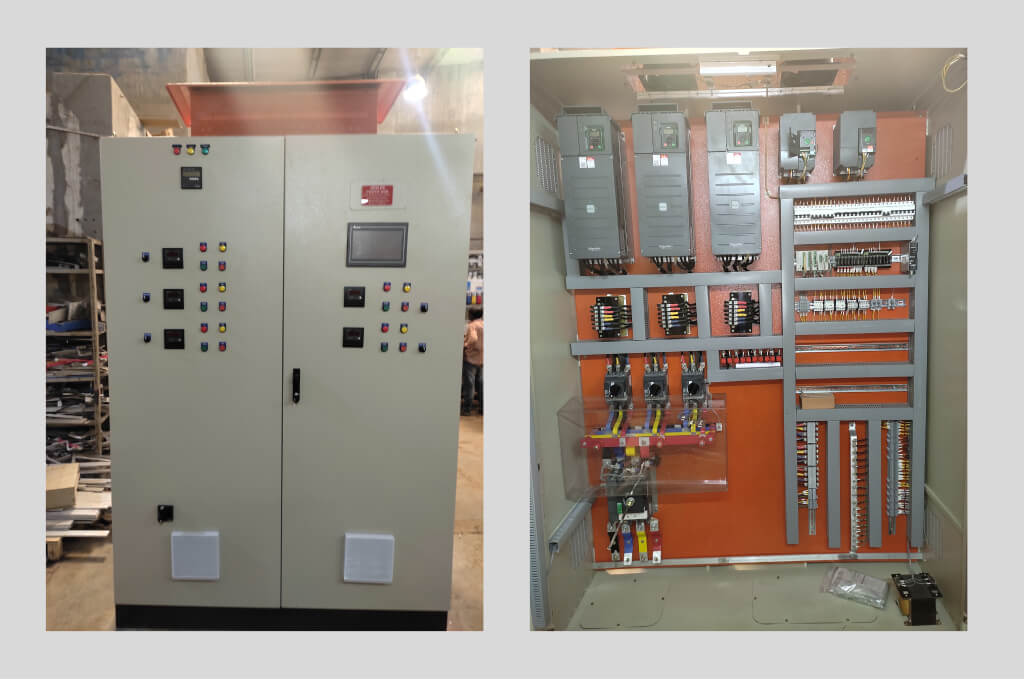

Ac drive panel
AC drives are used to control the speed of motor by controlling frequency of supply. In AC drives, frequency and voltage are changed in same proportion for smooth performance of ac motor.
Advantage:
- energy savings.
- low motor starting current.
- reduction of thermal and mechanical stresses on motors and belts during starts.
- simple installation.
- high power factor.
Used at Pumps, fans and conveyor applications alone can generate hundreds of applications.

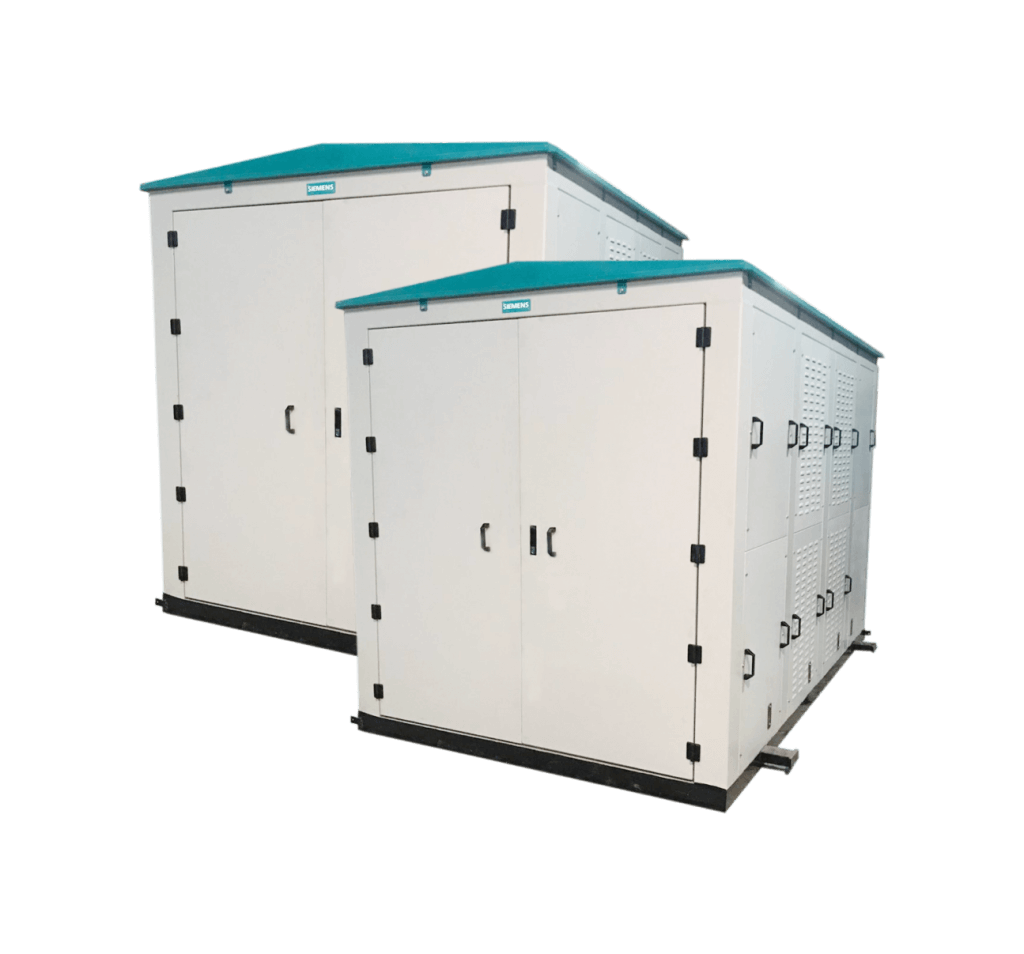

Compact substation
It comprises factory built sheet metal enclosure housing MV Switchgear, Transformer, LT Switchgear, Power Factor Correction System, and other site specific requirement.
Advantage of Compact Substation:
- Compact, Safety and Aesthetically superior.
- Reduced Electrical losses as USS can be provided near the Load Center.
- A High degree of safety and operational reliability.
- Civil/Foundation Cost. of
Uses of Compact Substation:
- Residential Complexes.
- Power Utilities.
- Multiplexes.
- Hotels
- Hospitals
- Shopping Malls.
- Software Parks Airports, Construction sites

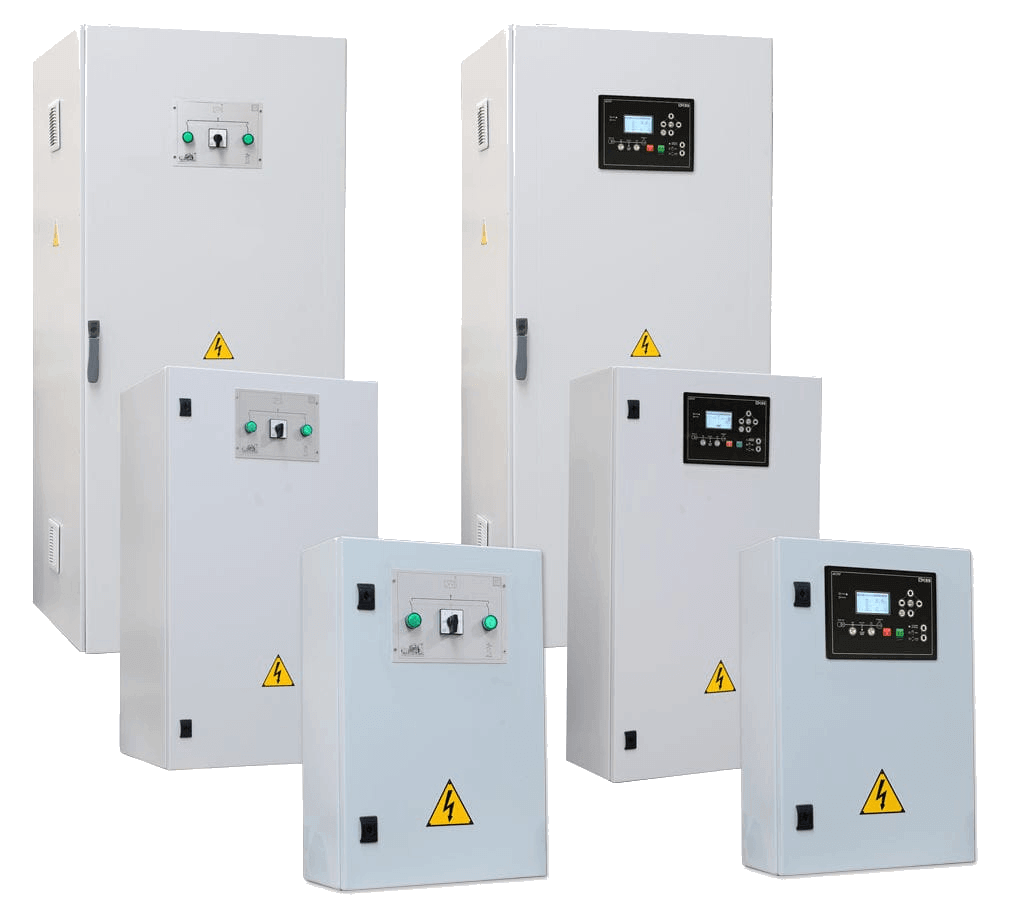

Ats panel
ATS is Automatic Transfer Switches, It is an automated switching device that transfers load power to backup power during mains failure and back to its original state when mains power reinstate to the normal condition.
Advantage of Ats Panel:
- It can automatically transfer the load of the power on to the generator.
- It has built in sensors to detect any fluctuations in the voltage and frequency of the main power supply.
- It has time delay mechanism.
Used at-higher machines
- Software Parks Airports, Construction sites.

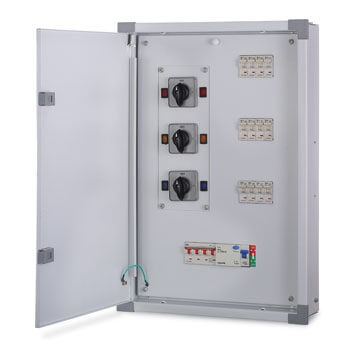

Db panel
Distribution Board panel divides an electrical power feed into subsidiary circuits.
Advantage of Db panel:
- Single point control.
- Greater safety
- Easy to use
- Accessibility
Used at – house, industry, large market area.

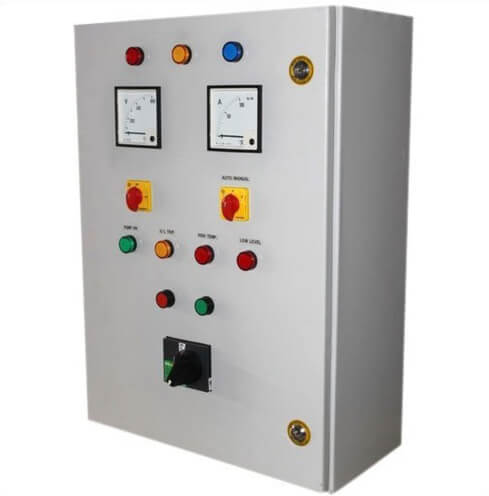

Dol Panel
Direct Online Motor operator is used to connect the motor directly to the power supply performing therefore a full-voltage start-up.
Advantage of Dol Panel:
- Start at full voltage and constant frequency.
- High starting torque.
- Very short acceleration times.
Uses.
- They are suitable for startup of small submersible pumps, deep well pumps or booster sets with surface pumps.

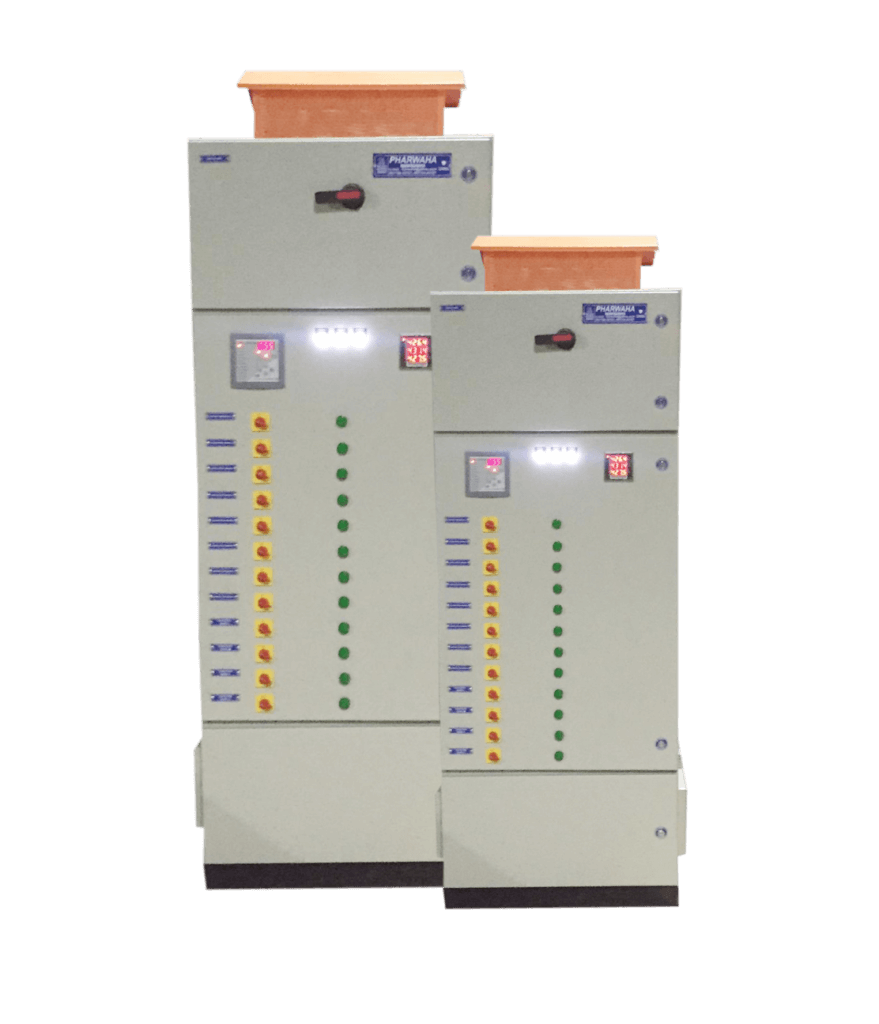

Apfc panels
APFC Panels Prevents damage to sensitive electronic equipment in network. If the load is uneven it is very difficult to maintain unity power factor. To overcome this difficulty APFC panel is used which maintains unity P.F.
Used at -Textile Machinery, Printing Industry , Pharmaceutical Industry , CNC Machine , Hospitals , Film Industry , Food Processing industry , Resorts , Hostels , farm house , Engineering Plant , Automobile Industry , IT industry.
Power Factor is avialable in 10 kva to 2000 kva. PaeKuljit provide best Automatic Power Factor Control Panels with Reasonable Price.
Advantage:
- Reduction in MD kVA
- Reduction in kWHr Consumption
- Reduction in kVAHr Charges
- Avoidance of PF Penalty
- Availing PF Incentive

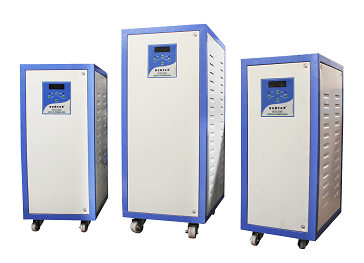

Sarvo Air Cooled
Panel used to configure and display motor drive parameters.
Advantage of Sarvo Air Cooled:
- Support of multilingual graphic display, wired and wireless protocols.
- Non-volatile memory interfaces for configuration and diagnostic data back-up.
- Low latency transceivers for isolated and non-isolated communication.
Uses.
- Used at-product packaging/bottling, and labeling.

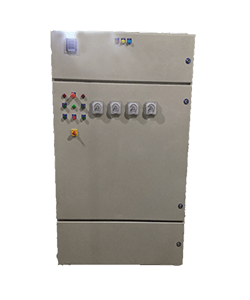

Automatic res fed panel for PVC machine
Automatic working panel for pvc industries
Advantage of Automatic res fed panel for PVC machine:
- High performance.
- Long working life.
- Minimum maintenance.
Uses.
- Used at-pvc machines.
